HPC Power Unit + Dispenser
500KW
Dual Connector
10.1”
Touchscreen
% 96,5
Efficiency
Ultra-Fast Distributed Charging Solution

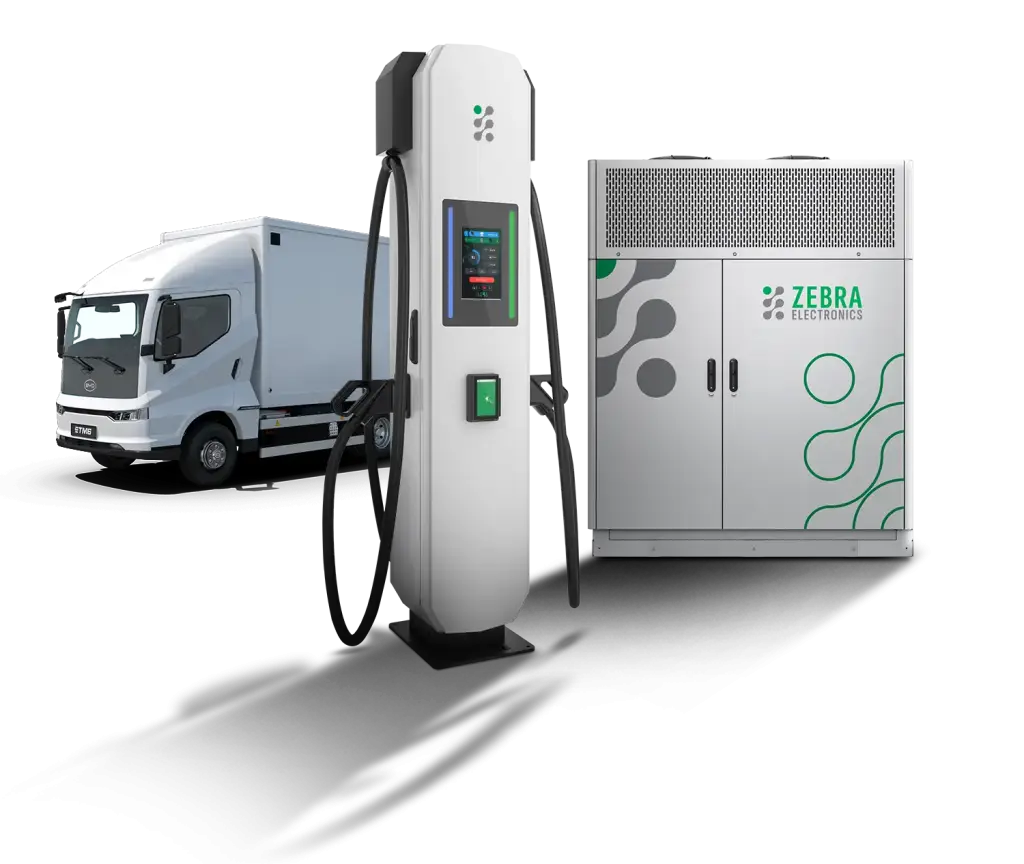

The ultra-quiet, liquid-cooled Huawei Fusion Charge Power Unit combined with high-efficiency BOOST-E dispensers offers an effective, innovative, and long-lasting solution for businesses seeking high performance and efficient investment. Supporting up to six dispensers simultaneously, it delivers up to 720 kW output, providing EV users with a high-speed, uninterrupted charging experience. Its quiet, compact design enhances usability, while a minimum 10-year operational guarantee ensures long-term reliable investment.
With high efficiency, distinctive design, and integration features, it provides a reliable, long-term investment.
Up to 500 kW
ultra-fast charging
Simultaneously charge 12 vehicles
Dynamic load balancing
96.5% efficiency
Quiet power unit
Compact design
Cable weight balancer
2 x Emergency Buttons
2 x CCS2 Connectors
IP54 / IK10 Environmental Protection
Ethernet / Wi-Fi / Mobile Connectivity
10.1” Touchscreen
Card Reader
LED Charging Indicator
POS Integration

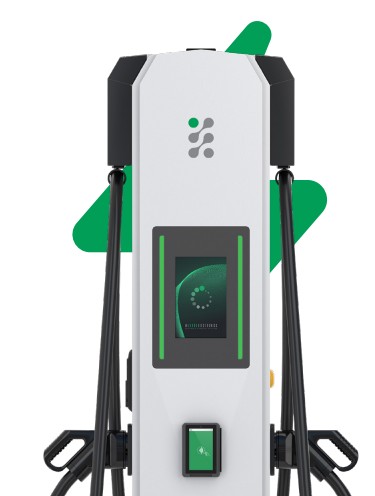

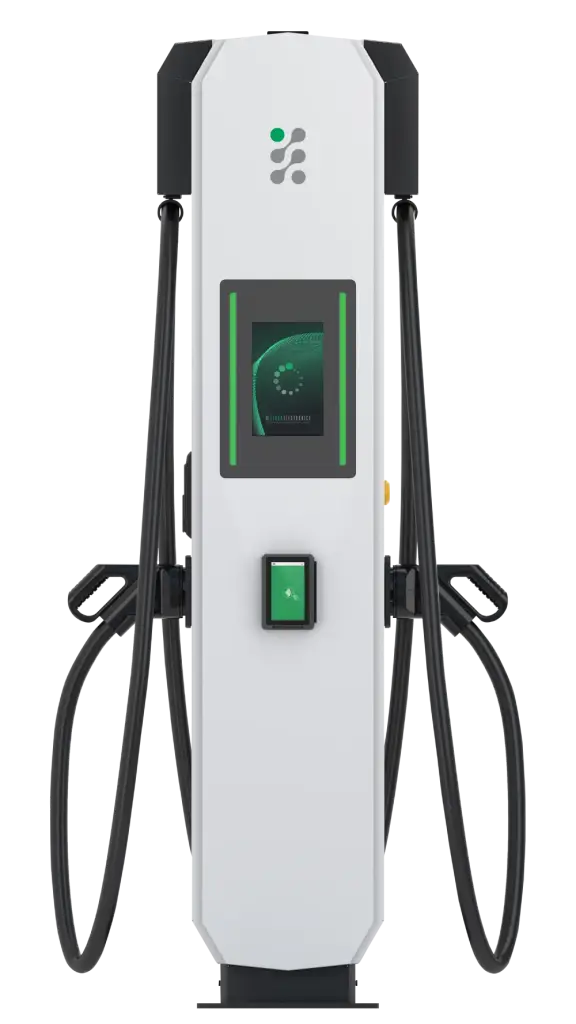

BOOST-E – Ultra-Fast Charging Dispenser
Provides a high-speed, uninterrupted charging experience for electric vehicle users.
Up to 500A Current & 500 kW Charging Power
The BOOST-E dispenser delivers up to 500 kW output depending on infrastructure suitability. With 400A continuous and 500A peak values, installed power is managed intelligently to maximize efficiency.
POS Payment Integration
BOOST-E supports various POS devices, offering flexible payment options according to location and need. This makes charging more practical for users and more profitable for operators.
Dual Connector
With dynamic smart load management, BOOST-E charges two vehicles simultaneously in the most efficient way, providing both speed and convenience. It saves time while maximizing usable power.

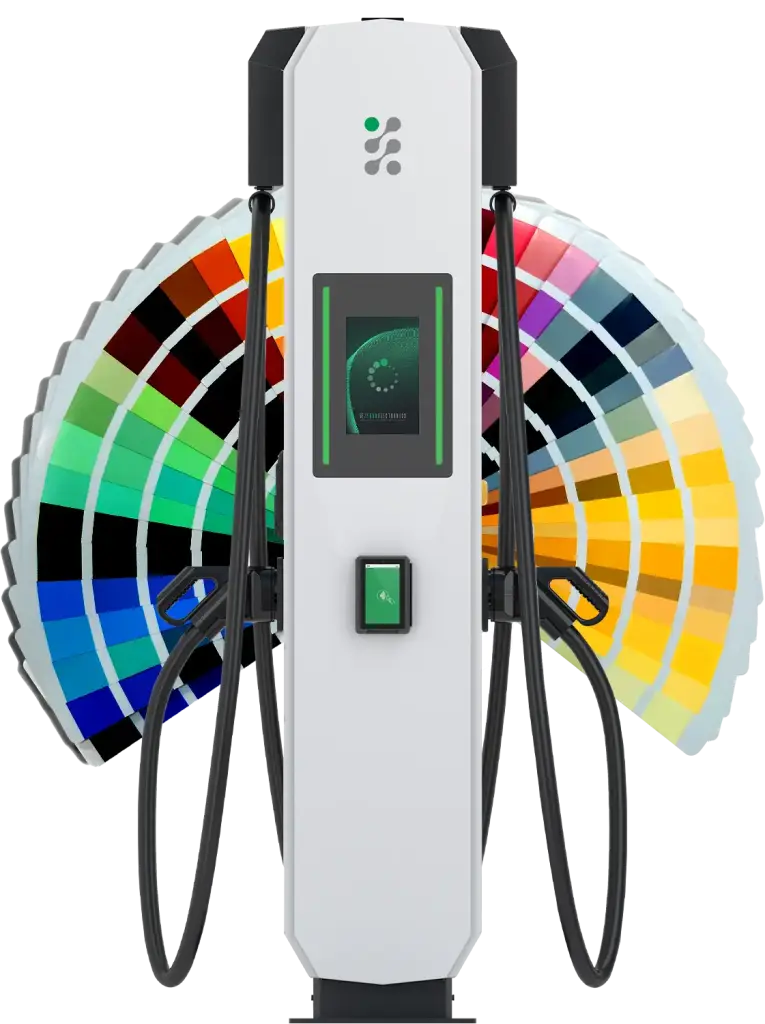

Branding Options
BOOST-E units offer extensive customization options to highlight your corporate identity. For bulk orders, the front panel can be produced in your brand colors, ensuring full alignment with your corporate branding.
FusionCharge Liquid-Cooled Power Unit
The fully liquid-cooled FusionCharge Power Unit is the core component of ultra-fast DC charging systems. Supporting up to six dispensers simultaneously, it delivers a maximum of 720 kW output.
Better Experience, Higher Quality, Greater ROI

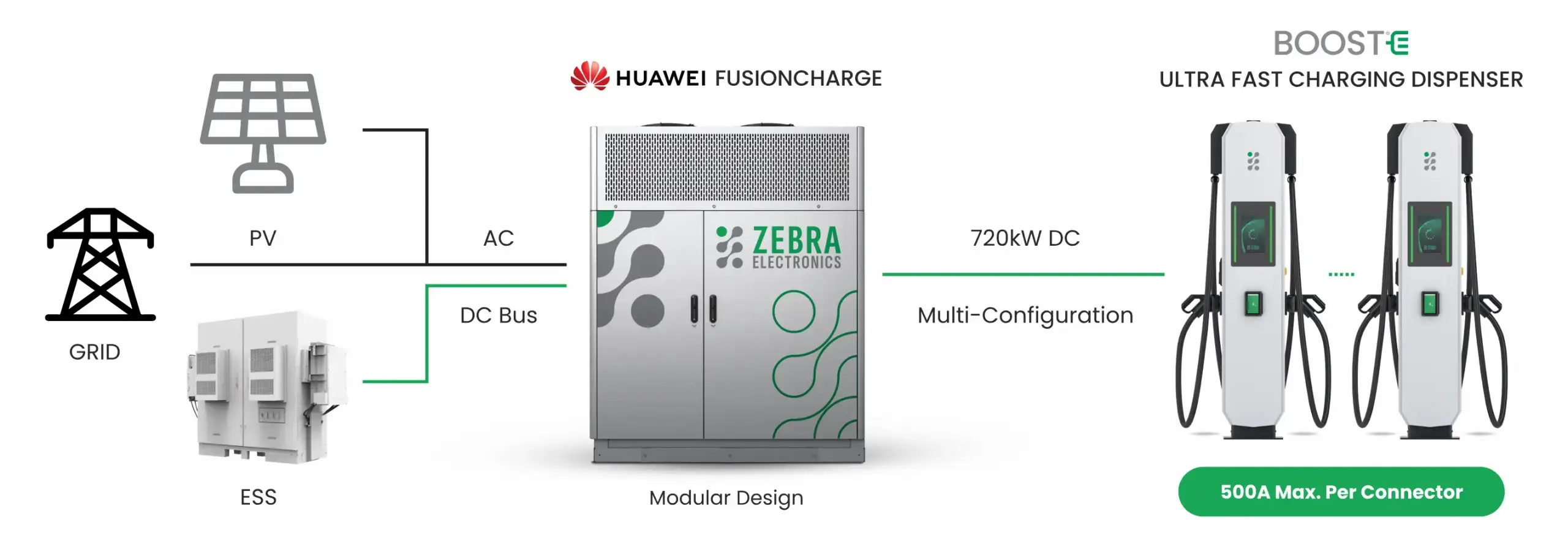

Liquid-Cooled Ultra-Fast Distributed Architecture
Dual Connector
BOOST-E dispensers come with dual CCS2 cable sets.
10.1” Touchscreen
EV drivers can easily manage charging operations via the 10.1” LCD touchscreen.
Charging Status Indicator
LED indicators provide EV drivers with real-time information on power, time, total energy, current, temperature, and more.
Communication
BOOST-E units support DIN70121 and IEC15118 standards for advanced communication.
Dynamic Power Management
BOOST-E optimizes power through dynamic load management, allowing each EV at a station to use local power efficiently.
Liquid-cooled
Liquid-Cooled, 10-Year Lifespan
Liquid-cooled design
Quiet & reliable operation
Dual-Layer Power Pool
Upgradeable
DC Bus Power Pool
Max 12 Socket Configuration
Power Distribution Matrix
Usage + 30%
Automatic Power Distribution & Sharing
Solar Energy + Energy Storage Support
Efficiency + 2.5%
Reduced conversion loss
Expand output power
Ultra-Quiet Operation
BOOST-E units operate ultra-quietly, providing uninterrupted comfort.
